Lubricants four food industry
Lubricants four food industry
Brugarolas offers the supply industry an extensive range of products for supplying, with international certifications from the American certifying board, NSF.
The lines: G. Beslux Atox, Beslux Atox, Beslux Gear Atox, etc. have been developed specifically for lubrication of machinery and installations within the supply industry, where incidental contact with foods can occur.
What is NSF Certification?
NSF classifies food grade lubricants into H1, H2 and H3. NSF H1 is suitable for “incidental contact” between lubricating oil and food or drink. It can be used as a protective anti-rust film, gasket or sealing tank separator for food processing equipment, or as a lubricant for mechanical parts and equipment at the position where food may be connected.
Why should we use lubricating oil with NSF H1 certification?
According to exposure risk levels, NSF H1 certified lubricating oil is required for baking furnace production line, conveying equipment, mixer and other equipment so as to reduce secondary pollution caused by the lubricant.
What is NSF 3H certification?
When the food processing factory uses the food grade mold release, it is required to follow the NSF 3H specification.
Why should we use the mold release with NSF 3H certification?
The white oil product is used as the mold release on the dough divider. Because it will contact with the dough, it is required to use the white oil with NSF 3H certification to reduce the secondary pollution and risk caused by the mold release.

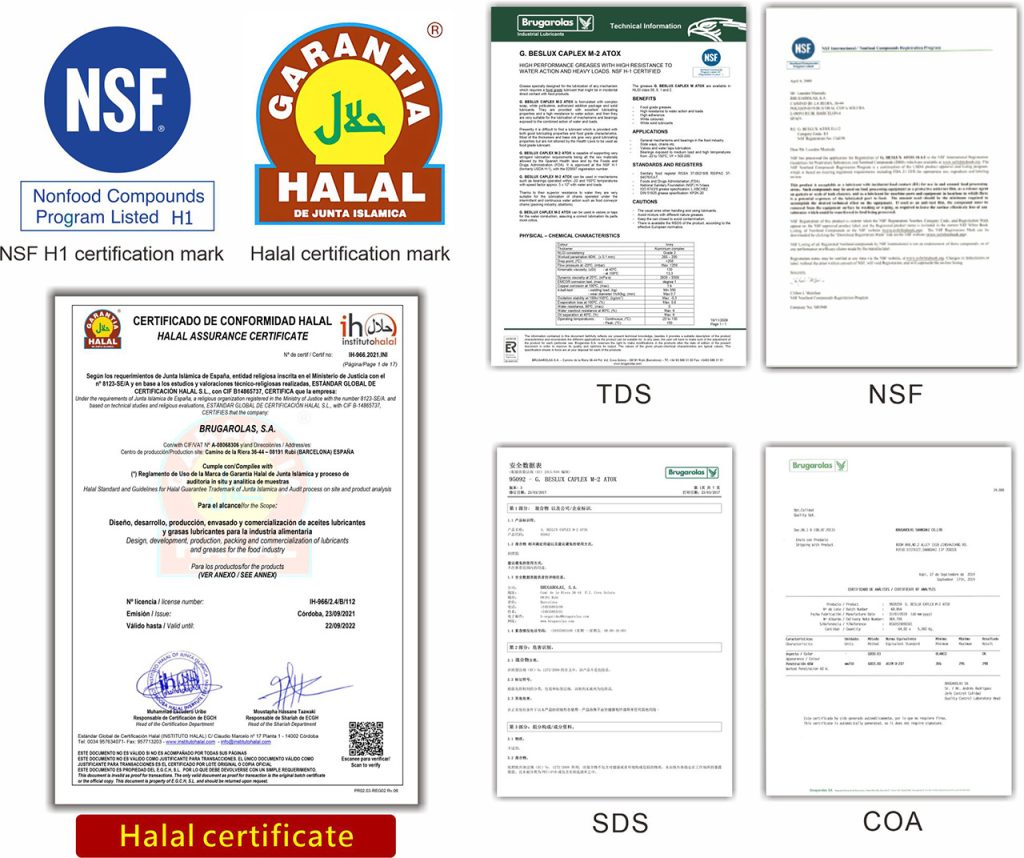

The Five Certificates
Food-grade Grease for Bearings
| Product | Property and Purpose | Temp (ºC) | NSF NO. |
| G. BESLUX CAPLEX M-00 ATOX | Non-toxic. avoid secondary pollution caused by oil leakage. Waterproof, anti-corrosion, long-term lubrication, light colour and tasteless lubricating grease. Resistant to water wash and heavy load. Suitable for the lubrication of machinery and bearings exposed to the water wash load. | -20 ~ 150 | 025695 |
| G. BESLUX CAPLEX M-0 ATOX | -20 ~ 150 | 116792 | |
| G. BESLUX CAPLEX M-1 ATOX | -20 ~ 150 | 025696 | |
| G. BESLUX CAPLEX M-2 ATOX | -20 ~ 150 | 025697 | |
| G.BESLUX ATOX TF/S | Synthetic high-temperature grease with PTFE solid lubricant, suitable for high-temperature and heavy-load equipment. | -40 ~ 180 | 134352 |
| G.BESLUX ATOX ASP-2 | High water resistance grease, steam- resistance, high adhesion, and white anti-seize lubrication. | -20 ~ 150 | 134353 |
| G.BESLUX ATOX H-1/2 | High-temperature fully synthetic bearing grease. Suitable for high temperature and heavy load equipment and bearings, ball joints, slide rails, refrigerator bearings, conveyor chain bearings, oven bearings, and valves. | -40 ~ 180 | 134358 |
| G.BESLUX ATOX H-2/3 | -40 ~ 180 | 111102 | |
| G.BESLUX SULPLEX FG-2212 | Food-grade calcium sulfonate synthetic grease. Suitable for high-temperature, heavy-load bearings, ball joints, slides, oven bearings, and valves. | -30 ~ 170 | 153955 |
| G.BESLUX SULPLEX FG-462/S | -45 ~ 180 | 164777 | |
| G.BESLUX PRESS MILL SX | Calcium sulfonate synthetic grease. Suitable for high-temperature, heavy-load bearings, including tablet press machinery. | -50 ~ 180 | 152417 |
| G.BESLUX FLUOR H-2 | PTFE grease for extreme high-temperature bearings, long life, high speed, perfluorinated grease. It can reach 280 degrees in a short time. | -25~260 | 136455 |
| G.BESLUX FLUOR HT-2 | PTFE grease for ultra-high temperature bearings, anti-solvent and chemical resistant, good heat stability. It can reach 300 degrees in a short time. | -25~280 | 136454 |
| G.BESLUX WHITE FOOD GREASE | Grease for bearings, valves, and chains with, very low odour, can be used for dust-free equipment. | -20 ~ 120 | 111107 |
Food-grade Lubricants for Special Equipment
| Product | Property and Purpose | Temp (ºC) | NSF NO. |
| DENSOLINA RVTH | Demoulding – colourless, odourless, tasteless white oil. Good adhesion and lubrication. It can be used as a lubricant and release agent in the food industry. Comply with NSF H1, NSF 3H specifications. | -20 ~ 245 | 025690 |
| DENSOLINA RVTM | -20 ~ 235 | 025691 | |
| BESSIL F-100 | Silicone oil for high and low-temperature stability. Effectively extend the service life of rubber, plastic and other materials. Suitable for demoulding and parting requirements, and silicone oil with stable thermal effect and high-temperature resistance. | -30~250 | 111098 |
| BESSIL F-10000 | -30~250 | 111099 | |
| G.A. BESSIL 25 | O-RING sealing protection – cylinder oil seal of water equipment. The pressure resistance and air tightness are good. | -50~180 | 111111 |
| G.BESLUX BESSIL EH-00 | Silicone grease, non-toxic. Contains PTFE solid lubricant. Can be used for water valves. UK WRAS, Germany TZW certification. It can be used for ceramic valve cores. | -45~180 | 132168 |
| G.BESLUX BESSIL EH-1 | -40~180 | 132166 | |
| G.BESLUX BESSIL EH-2 | -40~180 | 159749 | |
| G.BESLUX BESSIL EH-3 | -35~200 | 132165 | |
| G.BESLUX ATOX 151 | New model transparent-gel-like synthetic grease, non-toxic, and high wear resistance. | -50~180 | |
| G.BESLUX ATOX 1500 | Fully synthetic fluid grease for automatic packaging machines, clamping claws, and transparent appearance, without affecting packaging materials. | -50~180 |
During high-temperature operation, lubricants will have oil vapour evaporation. The chains are easy to deposit carbon because of lubricating oil. Avoid secondary pollution caused by oil vapour easily volatilizing to products.
Food-grade Lubricants for Gears
| Product | Property and Purpose | Temp (ºC) | NSF NO. |
| BESLUX GEAR ATOX 150 | Food grade gear oil for prevent pollution caused by leakage and provide long-term lubrication. Suitable for gears, transmission gearbox, spur gears, bevel gears, and helical gears. | -20 ~ 140 | 025684 |
| BESLUX GEAR ATOX 220 | -20 ~ 140 | 025685 | |
| BESLUX GEAR ATOX 320 | -20 ~ 140 | 111096 | |
| BESLUX GEAR ATOX 460 | -20 ~ 140 | 116788 | |
| BESLUX GEARSINT ATOX 100 | -40 ~ 250 | 154217 | |
| BESLUX GEARSINT ATOX 150 | -40 ~ 250 | 154218 |
Low/Normal/High Temperature Chain Oil
| Product | Property and Purpose | Temp (ºC) | NSF NO. |
| BESLUX CHAIN 3020 ATOX | High temperature chain oil for conveyor belts, high temperature oven chains, etc. Extremely low sludge production, reducing chain wear. | 240 | 140552 |
| BESLUX CHAIN 3500 ATOX | Fully synthetic ultra-high temperature chain lubricant. Suitable for tunnel chain oven lubrication. | 300 | 145058 |
| BESLUX GEAR-ATOX F-220 | Synthetic chain oil with high adhesion to the chain, and prevent falling. It can be used for hanging chains and any chains in slaughterhouse. | 230 | 142667 |
Food-grade Lubricants for Air Compressors
| Product | Property and Purpose | Temp | NSF NO. |
| BESLUX AIR-ATOX 32 | Specially designed for rotary blades or spiral compressors. Spiral type air compressor: ensure that the gasoline contained in the compressed air is non-toxic and tasteless, with a service life of 4000~6000 hours, and can lubricate the IQF rapid freezer slide rails. | 95°C Air compressor head temperature | 145059 |
| BESLUX AIR-ATOX 46 | 95°C Air compressor head temperature | 145057 | |
| BESLUX ATOX 100 | Wide range of viscosity, almost applicable to all reciprocating air compressors. Prevent pollution caused by leakage and provide long-term lubrication. | -20°C ~140°C | 116785 |
| BESLUX GEAR ATOX 150 | -20°C ~140°C | 025684 |
Food-grade Lubricants for Hydraulic Systems
| Product | Property and Purpose | Temp (°C) | NSF NO. |
| BESLUX ATOX 22 Recommended for pneumatic oil | In the process of food production, it may incidentally contact with processed food or raw materials. Good anti-wear property. Can be used as hydraulic oil in all places near food on hydraulic system equipment. The pour point is low, and it can be operated below 0 ºC. It can be operated more easily after several days of shutdown. Excellent deforming and oxidation resistance, good demulsibility to water. | -20 ~140 | 116787 |
| BESLUX ATOX 32 | -20 ~140 | 025677 | |
| BESLUX ATOX 46 | -20 ~140 | 025678 | |
| BESLUX ATOX 68 Recommended for vacuum pump | -20 ~140 | 025679 | |
| BESLUX ATOX 100 Recommended for vacuum pump | -20 ~140 | 116785 | |
| BESLUX DIVOLSINT ATOX 46 | -46 ~230 | 144478 |
Small Kitchen Appliances
| Equipment | Lubricating Point | Product | Description |
| Soybean milk machine, cooking machine, refrigerator, dishwasher | Sealing rings | BESSIL 25 BESSIL F-100 | Waterproof; Auxiliary seal, Low diffusion |
| Soybean milk machine, oven, steamer, microwave oven, mixer, cooking machine, dishwasher | Bearings | G. BESLUX CAPLEX M-00 ATOX | Reduce friction and noise, High water resistance |

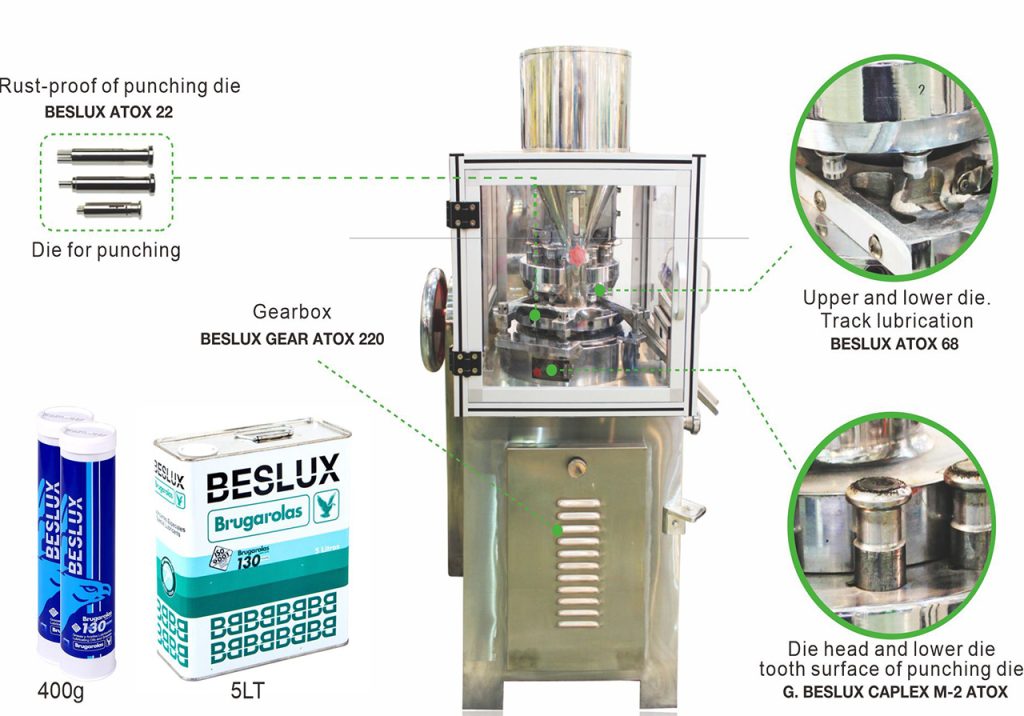

Lubrication of Tablet Press Machine
| Lubricating Point | Product | Description | Maintenance Period |
| Upper and lower stamping mould track lubrication | BESLUX ATOX 68 Lubricating oil | Lubricate the turntable track | Every week |
| Head and lower tooth surface of stamping mold | G. BESLUX CAPLEX M-2 ATOX Lubricating grease | Bearing lubrication, reduce friction | Every day |
| Gearbox | BESLUX GEAR ATOX 220 Lubricating oil for gearbox | Prevent oil vapor from volatilizing, or lead to cross contamination. | Every 1000 hrs. |
| Anti-rust of stamping mould | BESLUX ATOX 22 Lubricating oil | Anti-rust of mould. (Wipe it with alcohol first, then soak it with a brush.) | Every time while disassemble the mould |

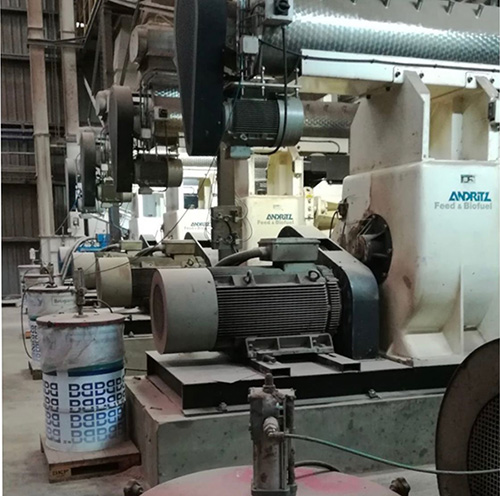

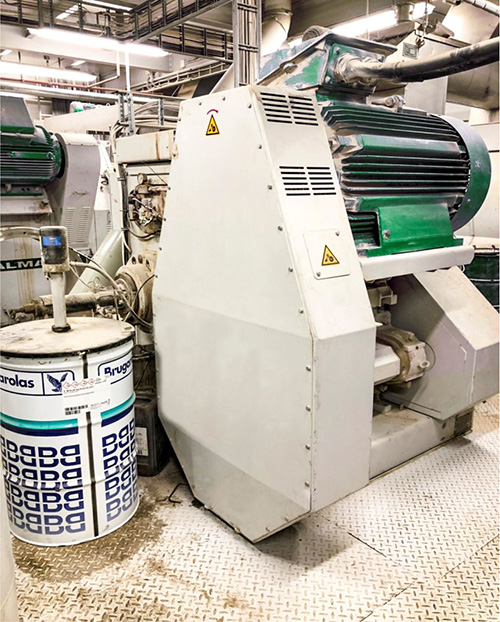

Lubrication of Pellet Press Machine
G.BESLUX ATOX H-1/2
G.BESLUX SULPLEX FG 2212
G.BESLUX PRESS MILL SX
The pellet press is widely used in the production of livestock feed, pet feed and fire fuel. In recent years, the production of pet feed has required the use of grease with NSF H1 certification to avoid the cross-pollution when the lubricant is mixed with the product during production.

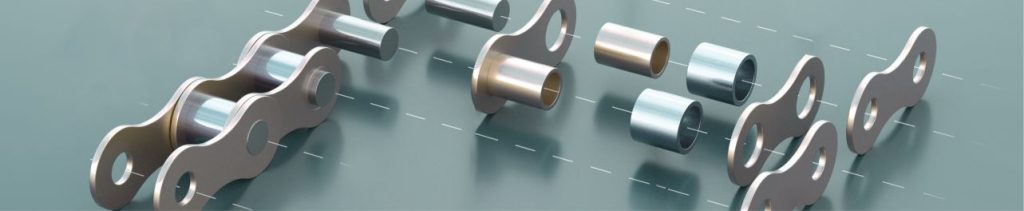

Recommendation for the Tunnel Furnace Chains
BESLUX CHAIN 3020 ATOX
BESLUX CHAIN 3500 ATOX
High-temperature fully synthetic chain oil with NSF H1 certification
■ Recommended to be used for chain lubrication. Thanks to its excellent lubricity and high-temperature thermal stability, it can reduce the generation of sludge. The product does not contain mineral components, which can reduce the carbon residue on the chain.
■ Comply with NSF H1 Lubricating oil specifications, certification numbers 140552 and 145058.
Property
■ Superior heavy load resistance and excellent abrasion resistance.
■ Excellent thermal stability and oxidation resistance, reducing sludge and carbon residue.
■ Provide excellent lubrication up to a high temperature of 240 °C.
■ PACKAGING: 5LT X 4 Tins / 20LT
Recommendation for the Release Agent
DENSOLINA RVTM/RVTH
NSF H1 & NSF 3H White oil NSF 3H Food Grade Specification
■ Paraffin oil meets European and American pharmaceutical grade standard specifications.
■ Approved industrial operation equipment which may come into contact with food.
■ Low-medium viscosity food lubricant that can neither stain nor pollute any machine or equipment.
■ It can be used as a release agent in the food industry.
■ Excellent lubricity. Odourless, tasteless white paraffin oil.
DENSOLINA Z-19
NSF H1 & NSF 3H Vegetable oil
NSF 3H Food Grade Specification
■ Biodegradable.
■ Dough divider oil based on MOSH/MOAH free vegetable oil.
■ It can be used in approved industrial operation equipment which may come into contact with food.
■ It can be used as a low-medium viscosity food lubricant that can neither stain nor pollute any machine or equipment.
■ It can be used as a release agent in the food industry.
MOSH/MOAH FREE
Why do we need MOSH/MOAH free lubricants?
Since mineral oil can enter food products along with food processing and supply chains, its contamination has been found in a variety of food products today. Potential sources of mineral oil (MO) are fuel, exhaust gas, lubricants, surface treatment agents, batching oils, packaging materials, etc. Some of the global food industry leaders have started to require OEMs to choose food-grade lubricants that do not contain MOSH/MOAH.
| No. | Grease | NSF | Application |
| 01 | G. BESLUX ATOX SM-152 | NSF H1 | NLGI 2 food-grade grease based on MOSH/MOAH free ester base oil. Suitable for bearing, chain, joint and pump. |
| 02 | G. BESLUX ATOX SM-1500 | NSF H1 | NLGI 00 food-grade grease based on MOSH/MOAH free ester base oil. Suitable for gearbox and chain. |
| 03 | G. BESLUX BIOGREASE M-2 FG | NSF H1 | Biodegradable NLGI 2 food-grade grease based on MOSH/MOAH free ester base oil. |
| 04 | G. BESLUX BESSIL EH-000~3 | NSF H1 | Food-grade grease based on MOSH/MOAH free silicone oil. Suitable for valve, faucet, water-proof application. |
| 05 | G.A. BESSIL 25 | NSF H1 | Food-grade grease based on MOSH/MOAH free silicone oil. Suitable for O-ring, valve, faucet, joint, worm gear and plastic-plastic lubrication. |
| NO. | Lubricating oil | ISO VG | NSF | Application |
| 06 | DENSOLINA Z-19 | Low | NSF 3H NSF H1 | Biodegradable, dough divider oil based on MOSH/MOAH free vegetable oil. |
| 07 | BESLUX HIDRA-ATOX | 46,68 | NSF H1 | Biodegradable, food-grade hydraulic oil based on MOSH/MOAH free ester oil. |
| 08 | BESLUX HIDRO-BAT | 32,46 | NSF H1 | Biodegradable, food-grade hydraulic oil based on MOSH/MOAH free ester oil. |
| 09 | BESLUX GEARBIO-ATOX | 150,220,320 | NSF H1 | Biodegradable, food-grade gear oil based on MOSH/MOAH free ester oil. |
| 10 | BESLUX TRIBOGEAR | 150,220,320,460 | NSF H1 | Food-grade gear oil based on MOSH/MOAH Free PAG base oil. |
